(1)Working Pressure: 15,000 psi
(2) Working Temperature: Ambient to 600 ℉
(3) Core diameter: Customer specified
(4)Core length: Customer specified
Availability: | |
---|---|
Quantity: | |
DCH-01
RIGCHINA
CH-01

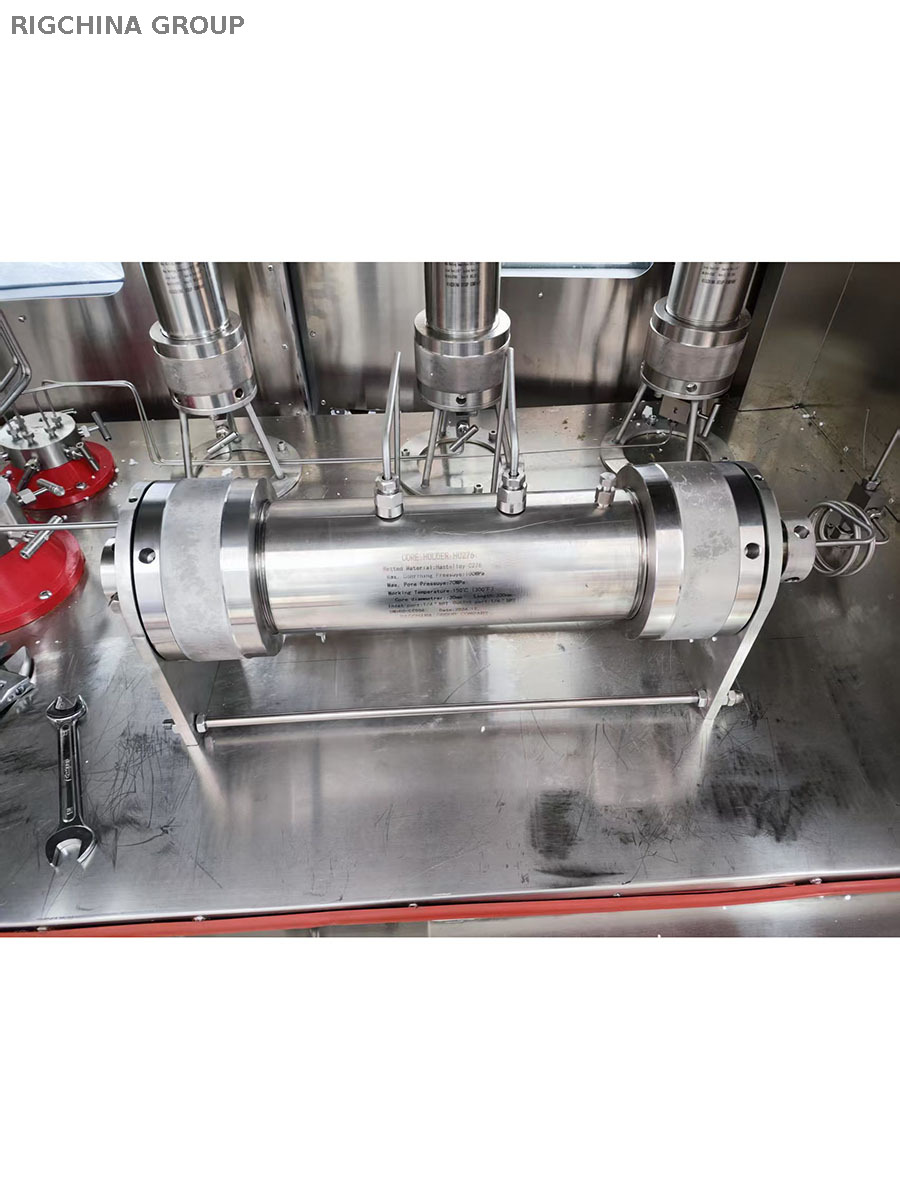

Core Holder- DCH Series

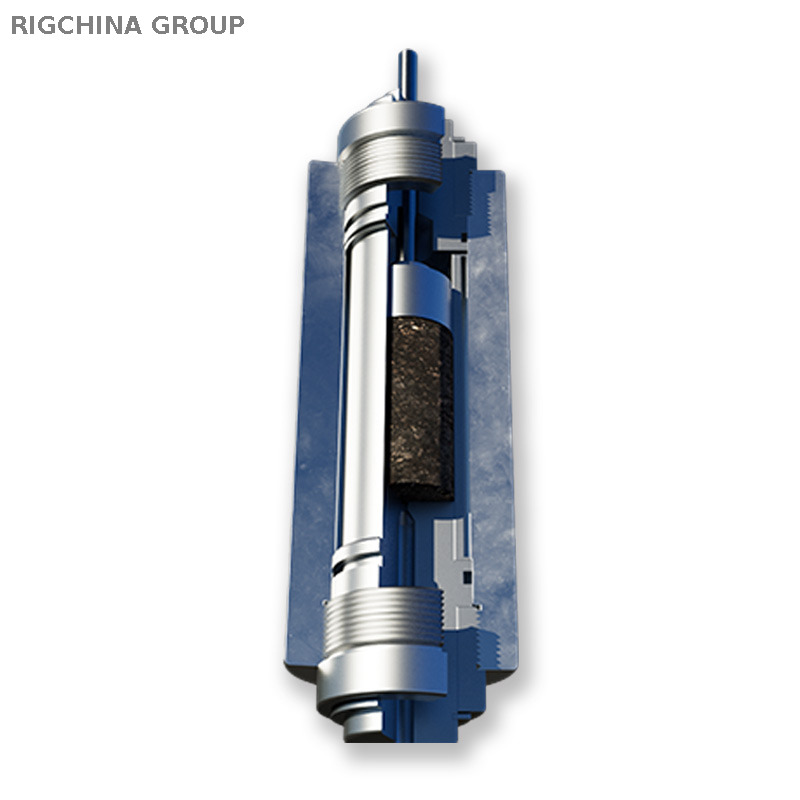

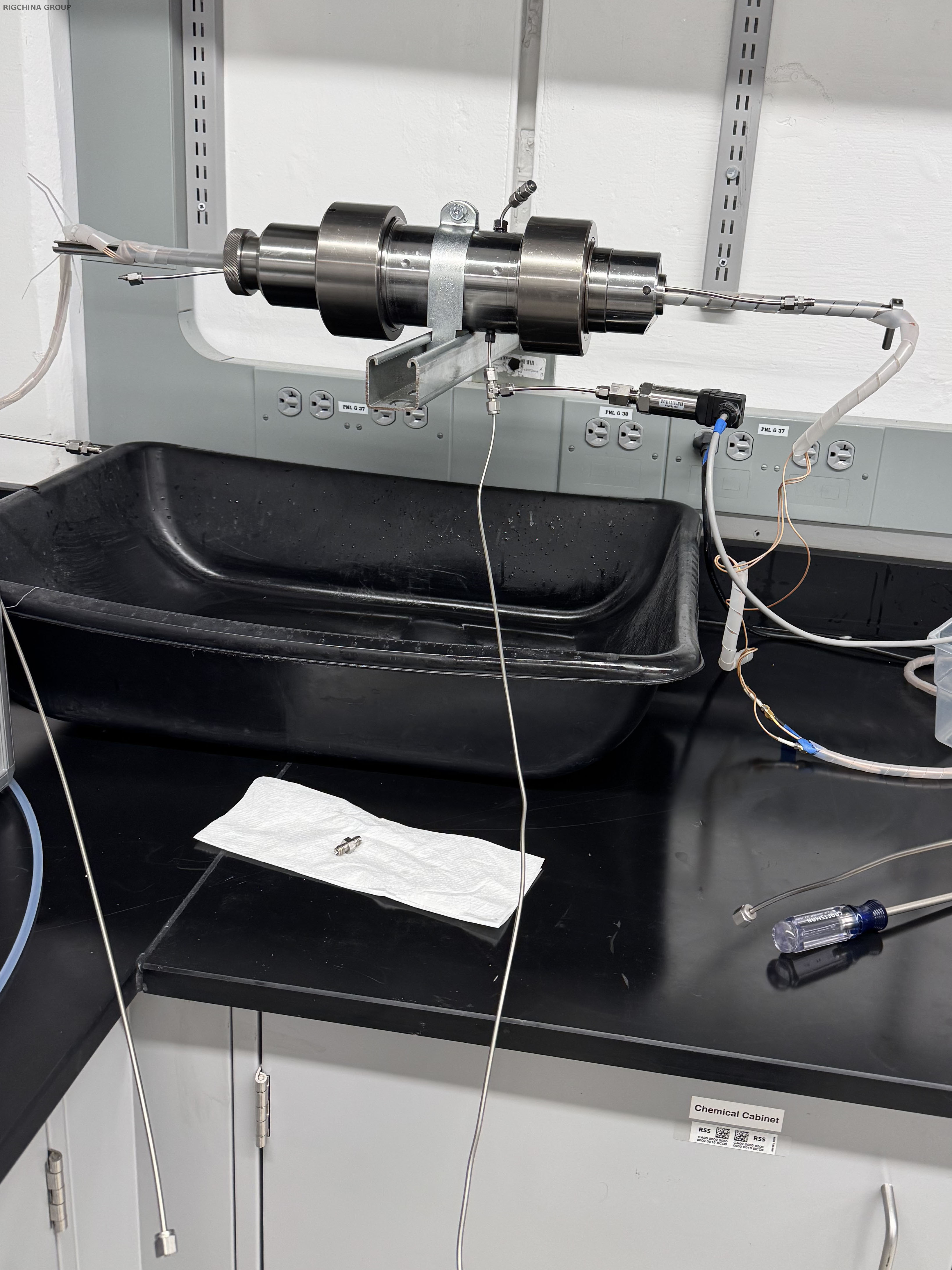

Our patented DCH Series core holders are core holders with pressure ports or taps molded into the confining pressure sleeve. These pressure ports allow the researcher to measure the pressure drop along the length of the core sample during the flooding process. These core holders are routinely used for gas and liquid permeability, relative permeability, formation damage studies, fluid reactions with the reservoir rock and other core flooding experiments.
These core holders offer several unique features. The pressure ports are molded into the sleeve for a solid bond. The pressure ports can be located at discrete locations along the core to meet the client’s requirements. Under the rate working temperature and pressure range, good sealing properties of the holder.
Sleeves can be fabricated on a custom basis for short (several inches) or long applications (several feet or meters). The pressure ports are designed to come out through the body of the core holder through one end or out through the core holder body. We have also supplied pressure ports that are connected to 1/16” or 1/8” tubing and come out through the ends of the core holder. These core holders can be supplied with any of the loading types that Core Lab offers.

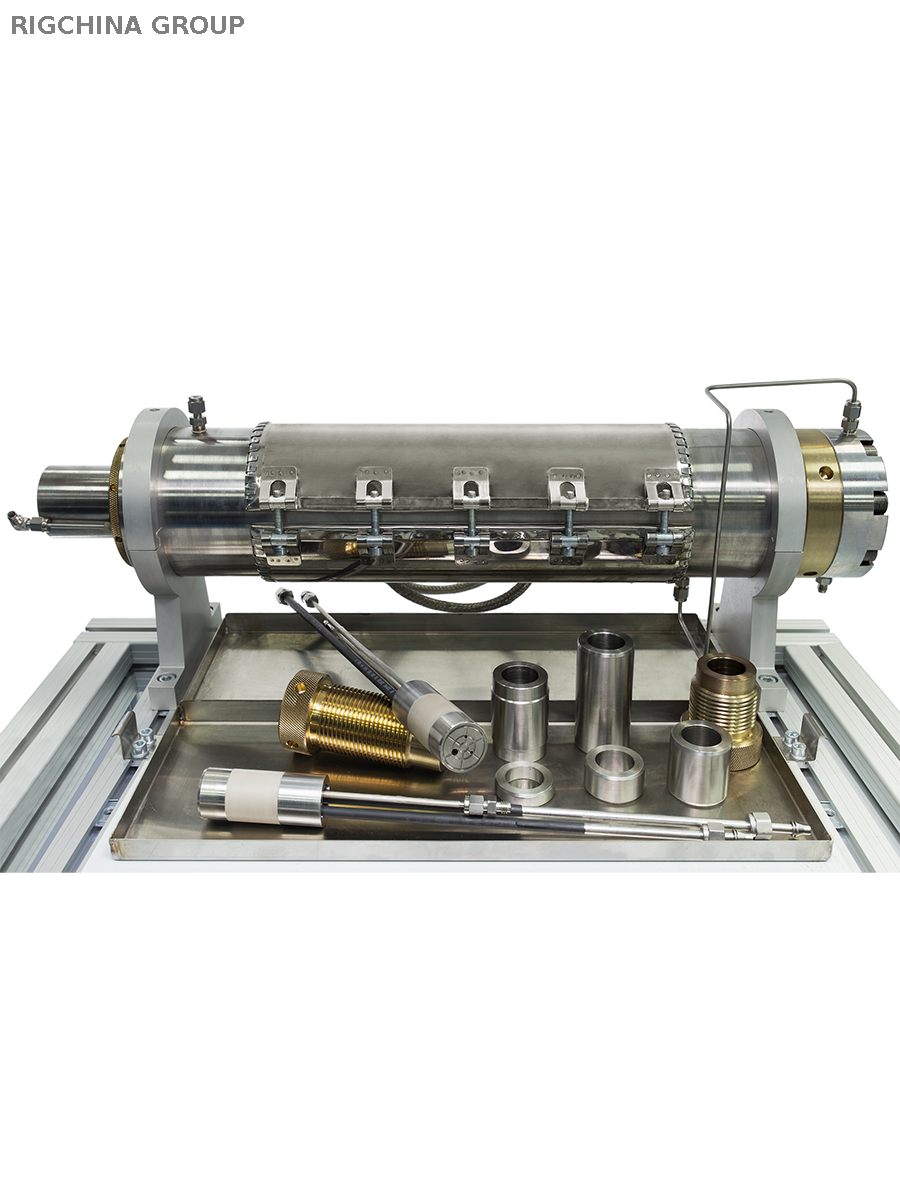

The loading types include Hassler, Biaxial, or Triaxial. The standard features of each design type are incorporated into the pressure-ported core holder.
Features:
(1)Working Pressure: 15,000 psi
(2) Working Temperature: Ambient to 600 ℉
(3) Core diameter: Customer specified
(4)Core length: Customer specified
Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length.

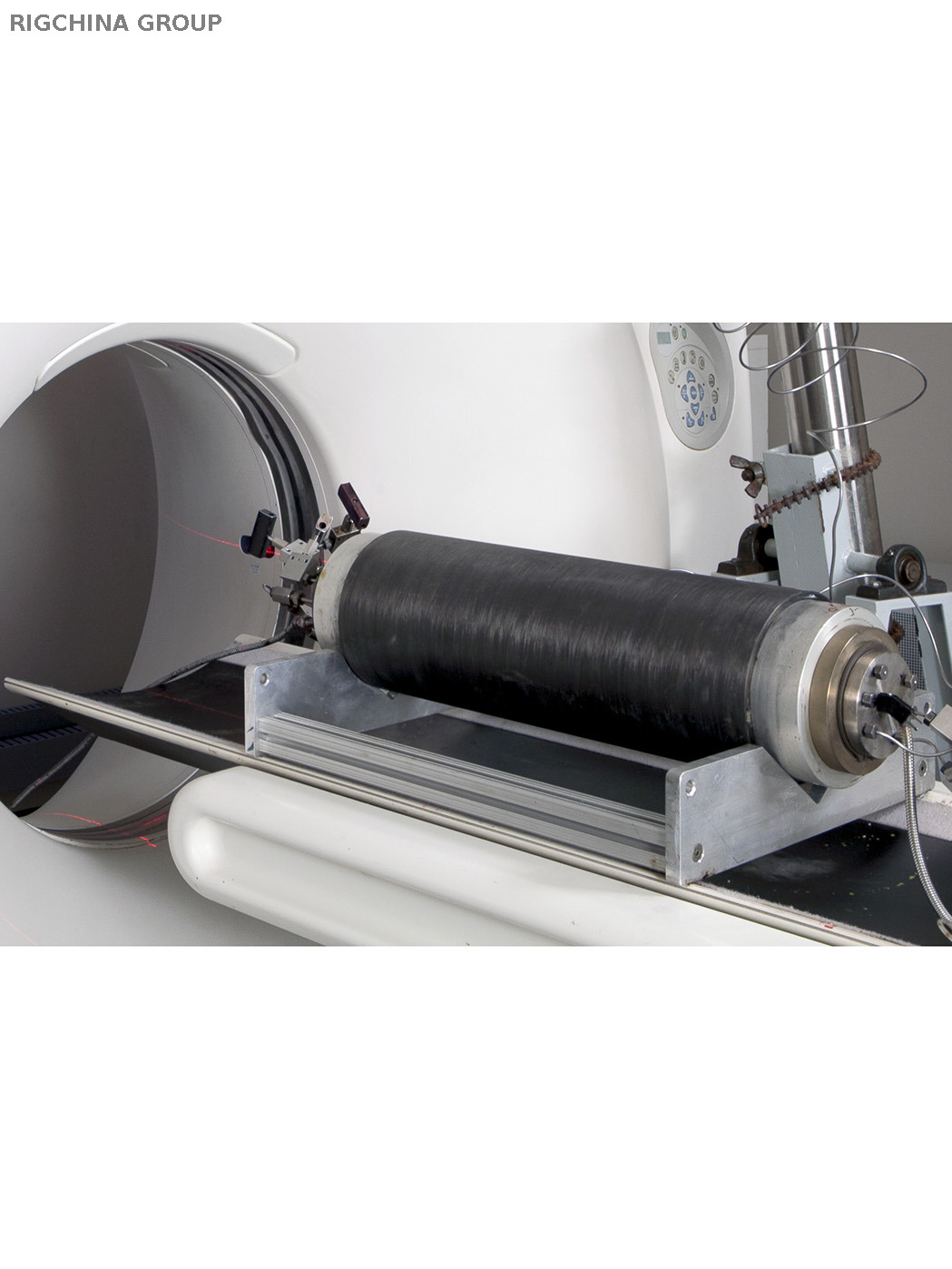

(5)Materials: stainless steel, PEEK (The experiment will be imaged with powerful X-rays)
(6) Sleeve material: Viton
Core Holder Specification | |||
Part No. | Model | Description | Remark |
CH-01 | DCH-01 | Wetted parts Material: Stainless Steel Sleeve material:viton Working Pressure: 10,000 psi (70Mpa) or 15,000 psi (100Mpa) Working Temperature: Ambient to 600 ℉(320℃) Fitting: NPT Pressure taps : As request Core diameter: Customer specified Core length: Customer specified Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length. Inlet port: As request Outlet port: As request | Customer specified |
CH-02 | DCH-02 | Wetted parts Material: PEEK (The experiment will be imaged with powerful X-rays) Sleeve material:viton Working Pressure: 4,300 psi Working Temperature: Ambient to 500 ℉(260℃) Core diameter: Customer specified Core length: Customer specified Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length. Inlet port: As request Outlet port: As request | |
CHD-03 | DCH-03 | Wetted parts Material: titanium or hastelloy Sleeve material:viton Working Pressure: 10,000 psi (70Mpa) 15,000 psi (100Mpa) Working Temperature: Ambient to 600 ℉(320℃) Core diameter: Customer specified Core length: Customer specified Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length. Inlet port: As request Outlet port: As request (1”) to 500mm(20”) in length. |
Core Holder- DCH Series
Our patented DCH Series core holders are core holders with pressure ports or taps molded into the confining pressure sleeve. These pressure ports allow the researcher to measure the pressure drop along the length of the core sample during the flooding process. These core holders are routinely used for gas and liquid permeability, relative permeability, formation damage studies, fluid reactions with the reservoir rock and other core flooding experiments.
These core holders offer several unique features. The pressure ports are molded into the sleeve for a solid bond. The pressure ports can be located at discrete locations along the core to meet the client’s requirements. Under the rate working temperature and pressure range, good sealing properties of the holder.
Sleeves can be fabricated on a custom basis for short (several inches) or long applications (several feet or meters). The pressure ports are designed to come out through the body of the core holder through one end or out through the core holder body. We have also supplied pressure ports that are connected to 1/16” or 1/8” tubing and come out through the ends of the core holder. These core holders can be supplied with any of the loading types that Core Lab offers.
The loading types include Hassler, Biaxial, or Triaxial. The standard features of each design type are incorporated into the pressure-ported core holder.
Features:
(1)Working Pressure: 15,000 psi
(2) Working Temperature: Ambient to 600 ℉
(3) Core diameter: Customer specified
(4)Core length: Customer specified
Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length.
(5)Materials: stainless steel, PEEK (The experiment will be imaged with powerful X-rays)
(6) Sleeve material: Viton
Core Holder Specification | |||
Part No. | Model | Description | Remark |
CH-01 | DCH-01 | Wetted parts Material: Stainless Steel Sleeve material:viton Working Pressure: 10,000 psi (70Mpa) or 15,000 psi (100Mpa) Working Temperature: Ambient to 600 ℉(320℃) Fitting: NPT Pressure taps : As request Core diameter: Customer specified Core length: Customer specified Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length. Inlet port: As request Outlet port: As request | Customer specified |
CH-02 | DCH-02 | Wetted parts Material: PEEK (The experiment will be imaged with powerful X-rays) Sleeve material:viton Working Pressure: 4,300 psi Working Temperature: Ambient to 500 ℉(260℃) Core diameter: Customer specified Core length: Customer specified Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length. Inlet port: As request Outlet port: As request | |
CHD-03 | DCH-03 | Wetted parts Material: titanium or hastelloy Sleeve material:viton Working Pressure: 10,000 psi (70Mpa) 15,000 psi (100Mpa) Working Temperature: Ambient to 600 ℉(320℃) Core diameter: Customer specified Core length: Customer specified Common Dimensions: 25.4mm (1”), 38mm (1.5”) , 50mm (2”) , 80mm(3”) and 133mm (5.25”) in diameter and 25.4mm (1”) to 500mm(20”) in length. Inlet port: As request Outlet port: As request (1”) to 500mm(20”) in length. |
