Measure Head Weight Indicator Systems

Compact, versatile, portable weight indicator for small drilling and workover rigs
Instant, accurate indications of total hook load and net weight on bit enable faster, more efficient drilling

Measure Head Weight Indicator Systems

Rugged weight indicator systems for precision force and tension measurements

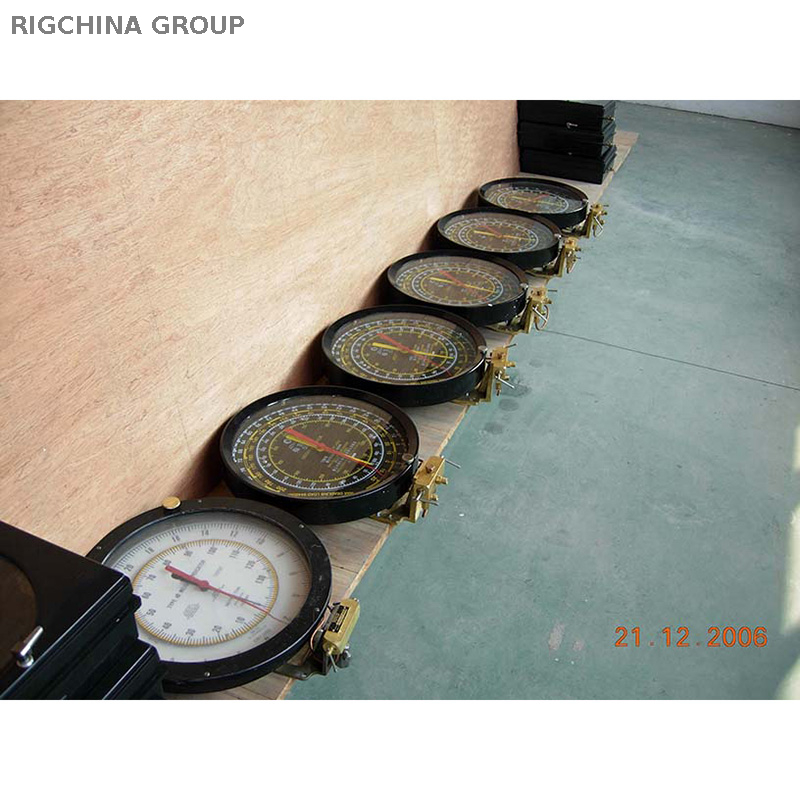

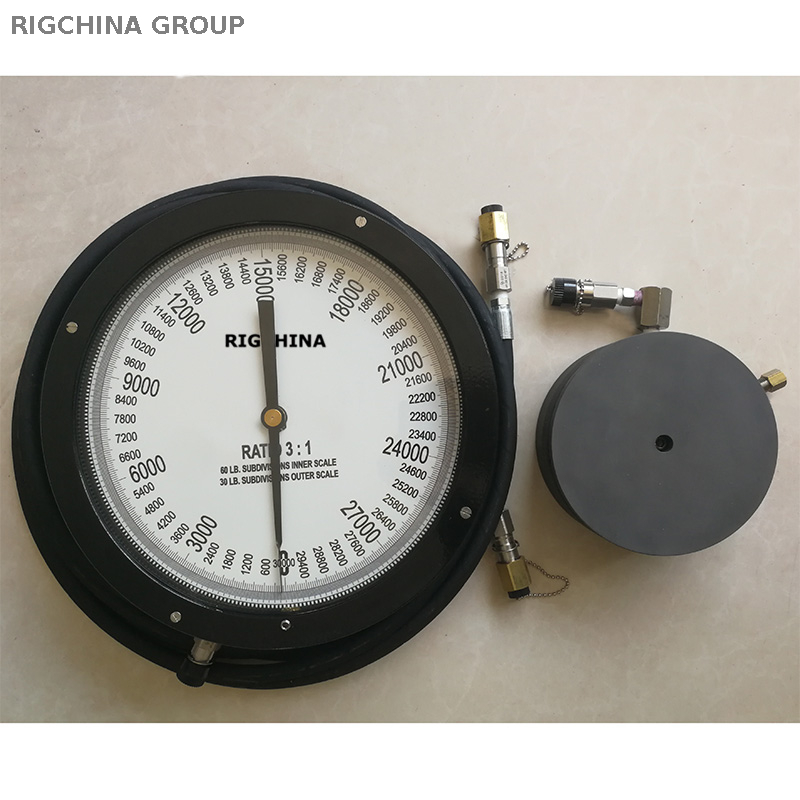

The Measure Head Weight Indicator systems provide precise, accurate measurement of downhole tool weights during wireline operations. Each hydraulically-operated system includes a Compression Load Cell and a Gauge, connected by a Hydraulic Hose.

  • Each system assembled,calibrated, loaded with indicator fluid, and tested before shipment.

  • Standard gauges include 10:1 ratio vernier scale.

  • Single-pointer gauges  available.

  • Easy-to-read 6-inch  dial gauge faceplate displays weight in pounds, kilograms, and      decanewtons.

  • Available in a range  of capacities: 5000, 6000, 10,000 and 20,000 pounds.

  • Integral damper  assembly increases pointer sensitivity —  for accuracy even with the smallest loads.

  • Custom logos available  for gauges.

  • Compression load cells and replacement diaphragm      rubbers available for 2- and 3-foot measure heads.

  • Precision ball bearing  gauge movements and calibration
         to ± 0.5% accuracy ensure reliable readings, reducing loss of valuable  downhole tools.

  • Rugged design for  operation in extreme environments, within ambient temperatures of -29° to  49° C (-20° to 120° F).

  • Operator-adjustable  pointer response time and calibration controls for custom onsite  adjustment.

  • Offers years of cost-effective, low maintenance service. Routine repairs can be performed by the operator.
