Pump Stroke Counter/Rate Meter Model PSC-3

​Monitors and displays number of strokes and stroke rate for Three mud pumps

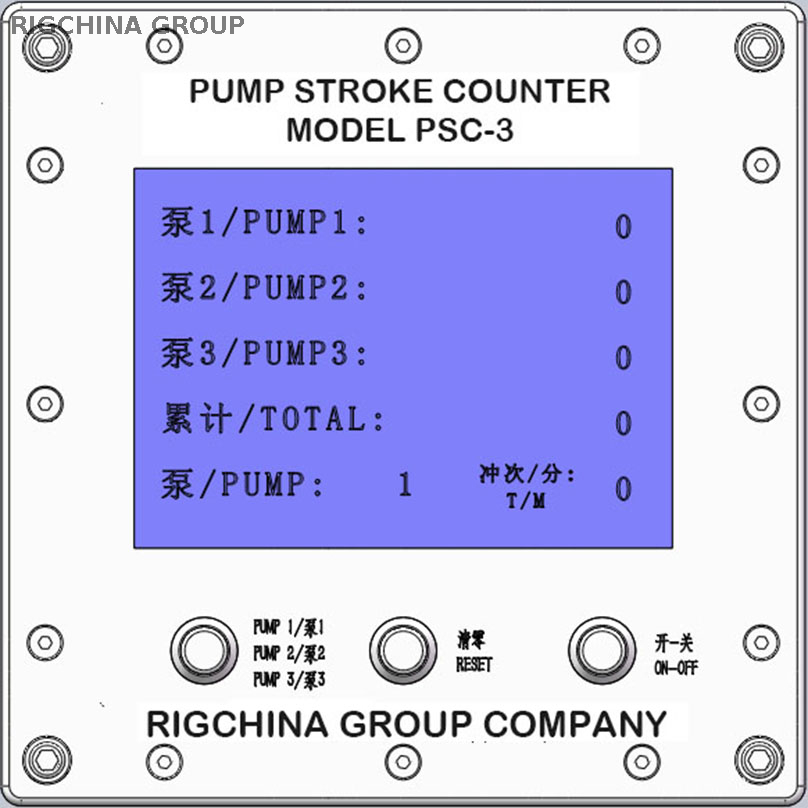

The Pump Stroke Counter/Rate Meter displays both the total number of strokes and the strokes per minute for 3 mud pumps up to 1,024 strokes per minute for each pump. Push buttons conveniently located on the front of the instrument make it easy for the operator to reset each pump count

Quantity:
  • Model PSC-3
  • RIGCHINA

Pump Stroke Counter/Rate Meter

Monitors and displays number of strokes and stroke rate for Three mud pumps

The RIGCHINA Pump Stroke Counter/Rate Meter displays both the total number of strokes and the strokes per minute for 3 mud pumps up to 1,024 strokes per minute for each pump. Push buttons conveniently located on the front of the instrument make it easy for the operator to reset each pump count

. A stainless-steel enclosure ensures reliable readings even in the toughest operating environments.

Features:

  • Displays total number of strokes — from 0 to 9,999

  • Displays number of strokes per minute — from 7.5 to 1,024

  • Low current consumption — approximately 100 uA in standby mode

  • LCD display height: 5.33 inch(135.28mm), Width :3.76inch (95.5mm)

  • Operates in temperatures from -4° to 140° F (–20° to 60° C)

  • Available model that meets Class 1, Division 1 standards

  • Displays strokes for 3 mud pumps

Benefits:

  • Battery powered — no external power required.

  • Low energy use adds the extra benefit of an intrinsically safe      design.

  • Stainless steel enclosure ensures accurate readings in harsh      environments.

  • Easy-to-read display and easy-to-use control buttons.

  • Low maintenance, with a long life expectancy of 50,000 hours of      continuous use.

  • Requires no calibration.

To order specify:

  • Magnetic Sensor or Mechanical Switch Sensor
