DCH-02
RIGCHINA
CH-02

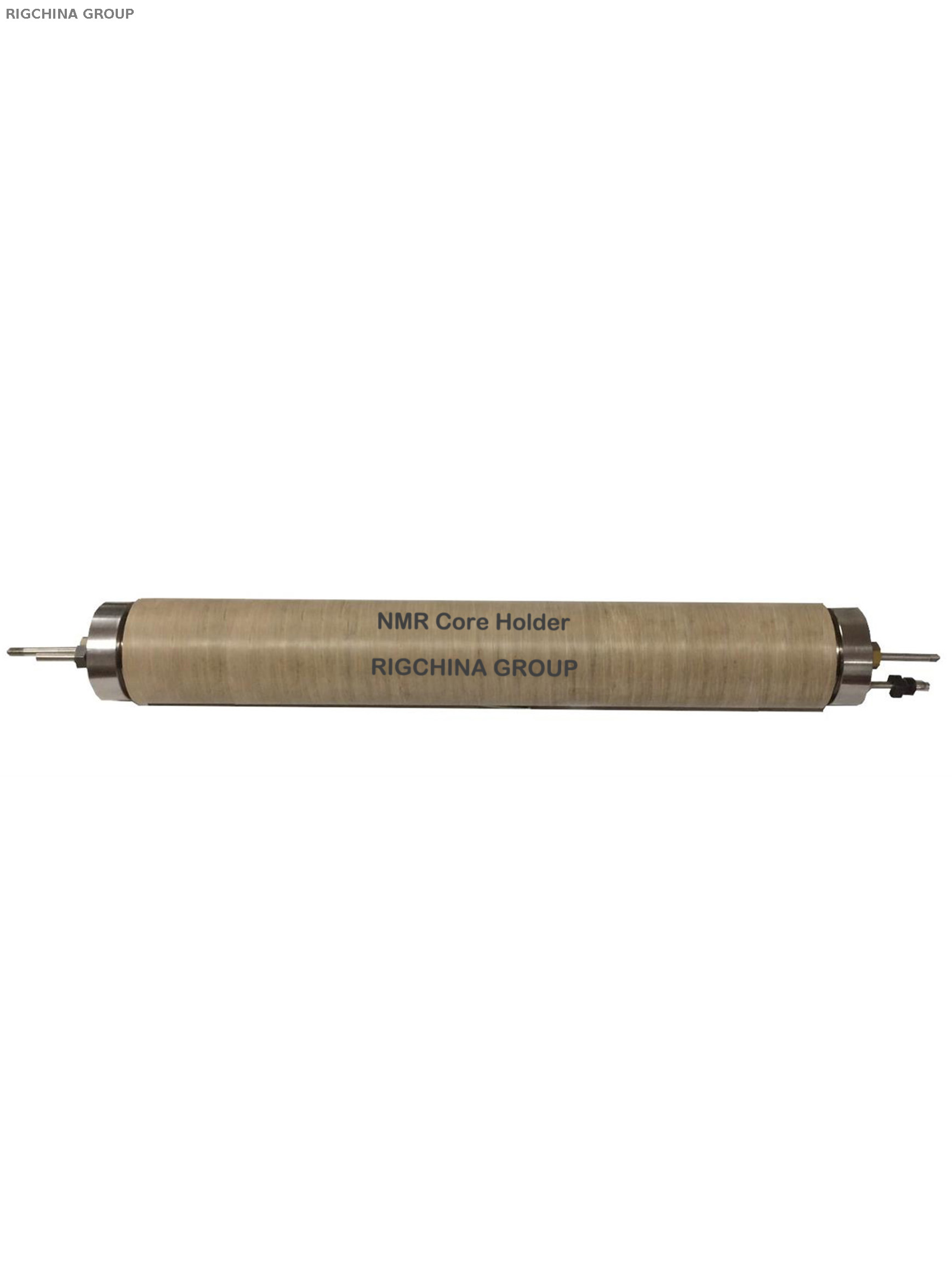

X-Ray Core Holder- NMRCD Series
Application:
Designed for X-ray and Gamma scanning of core samples to evaluate fluid flow properties in reservoir rocks. Suitable for dual-energy studies, MRI imaging, and high-pressure core analysis.
These core holders offer an aluminum body which is over wrapped with carbon fiber composite. The aluminum-composite body absorbs less X-rays or Gamma rays than an all-aluminum core holder and is more cost effective than a carbon fiber epoxy core holder. With the lower absorption, dual-energy studies can still be performed at high pressure. The composite aluminum body has a uniform thickness throughout the length of the core, so measurements can be easily performed. The internal parts of the core holder can be similar to the Hassler, Biaxial, Tri-axial, or pressure tapped core holders. Please refer to the other Series catalog sheets for specific information.
If the core holder is supplied with pressure taps, then the pressure port fitting and tubing can be manufactured from PEEK or titanium material. The PEEK or titanium material is recommended for low Xray absorption. The thickness of the aluminum liner increases as the inner diameter, pressure, and temperature increase. At high pressures and temperatures, the required aluminum wall thickness, for safe operation, may have too much X-ray absorption. These factors are all taken into account by the experienced engineering staff at RIGCHINA Group to insure that a core holder will be delivered that will satisfy the requirements.
Body & Materials
Main Body:
Aluminum core overwrapped with carbon fiber composite.
Offers lower X-ray/Gamma absorption than all-aluminum holders.
More cost-effective than full carbon fiber epoxy options.
Uniform wall thickness ensures accurate imaging.
Internal Configuration:
Can be configured as:
Hassler type
Biaxial
Tri-axial
Pressure tapped
Refer to respective series sheets for specific designs.
Liner Material:
PEEK inserted into composite body (for MRI compatibility).
Pressure Tap Materials (if applicable):
PEEK or Titanium – chosen for low X-ray absorption and compatibility with imaging.
Operating Specifications
Pressure | up to 5,000 psi |
Temperature | up to 150°C |
Core Sample Dimensions
Diameter:
1 inch or 1.5 inches (standard)
Custom diameters on request
Length:
0 to 4 inches (adjustable, as per customer request)
Functional Features
Sleeve Material:
Teflon or Viton, or other options as requested.
Wetted Parts:
Titanium and PEEK – for corrosion resistance and low absorption.
Pressure Loading:
Hydrostatic with equal radial and axial confining pressure.
Fluid Flow:
Via two floating platens, each with ¼” diameter tubing.
Platens maintain consistent contact with core sample regardless of length.
Core Exchange Process:
Drain confining fluid
Remove end plugs
Replace core sample in Teflon sleeve
Reverse procedure to reassemble
Ports & Fittings
Inlet Port: One (customizable)
Outlet Port: One (customizable)
Fitting Size: ¼” (customizable upon request)
X-Ray Core Holder- NMRCD Series
Application:
Designed for X-ray and Gamma scanning of core samples to evaluate fluid flow properties in reservoir rocks. Suitable for dual-energy studies, MRI imaging, and high-pressure core analysis.
These core holders offer an aluminum body which is over wrapped with carbon fiber composite. The aluminum-composite body absorbs less X-rays or Gamma rays than an all-aluminum core holder and is more cost effective than a carbon fiber epoxy core holder. With the lower absorption, dual-energy studies can still be performed at high pressure. The composite aluminum body has a uniform thickness throughout the length of the core, so measurements can be easily performed. The internal parts of the core holder can be similar to the Hassler, Biaxial, Tri-axial, or pressure tapped core holders. Please refer to the other Series catalog sheets for specific information.
If the core holder is supplied with pressure taps, then the pressure port fitting and tubing can be manufactured from PEEK or titanium material. The PEEK or titanium material is recommended for low Xray absorption. The thickness of the aluminum liner increases as the inner diameter, pressure, and temperature increase. At high pressures and temperatures, the required aluminum wall thickness, for safe operation, may have too much X-ray absorption. These factors are all taken into account by the experienced engineering staff at RIGCHINA Group to insure that a core holder will be delivered that will satisfy the requirements.
Body & Materials
Main Body:
Aluminum core overwrapped with carbon fiber composite.
Offers lower X-ray/Gamma absorption than all-aluminum holders.
More cost-effective than full carbon fiber epoxy options.
Uniform wall thickness ensures accurate imaging.
Internal Configuration:
Can be configured as:
Hassler type
Biaxial
Tri-axial
Pressure tapped
Refer to respective series sheets for specific designs.
Liner Material:
PEEK inserted into composite body (for MRI compatibility).
Pressure Tap Materials (if applicable):
PEEK or Titanium – chosen for low X-ray absorption and compatibility with imaging.
Operating Specifications
Pressure | up to 5,000 psi |
Temperature | up to 150°C |
Core Sample Dimensions
Diameter:
1 inch or 1.5 inches (standard)
Custom diameters on request
Length:
0 to 4 inches (adjustable, as per customer request)
Functional Features
Sleeve Material:
Teflon or Viton, or other options as requested.
Wetted Parts:
Titanium and PEEK – for corrosion resistance and low absorption.
Pressure Loading:
Hydrostatic with equal radial and axial confining pressure.
Fluid Flow:
Via two floating platens, each with ¼” diameter tubing.
Platens maintain consistent contact with core sample regardless of length.
Core Exchange Process:
Drain confining fluid
Remove end plugs
Replace core sample in Teflon sleeve
Reverse procedure to reassemble
Ports & Fittings
Inlet Port: One (customizable)
Outlet Port: One (customizable)
Fitting Size: ¼” (customizable upon request)
