Electric viscometer , Model RC-12D

The Viscometer measures rheological properties of Newtonian and non-Newtonian fluids. properties of the same material.API Tests Pre-programmed,12 presets (600,300,200,180,100,90,60,30,6,3,2,1)
Push button design for easy operation and better control
Quantity:
  • RC-12D
  • RIGCHINA
  • 130-12

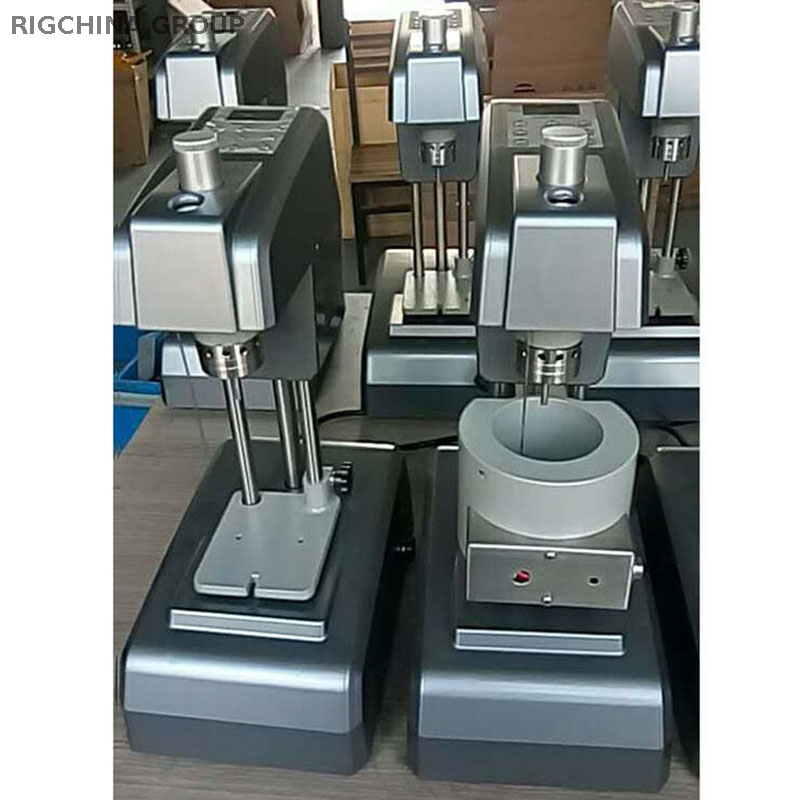

Electric viscometer Model RC-12D ,Part No. 130-12


The development of instrumentation to measure material properties has paralleled our understanding of their molecular properties. We now use viscometers that routinely measure viscosity as a function of shear rate together with rheometers that can characterize the solid-like properties of the same material.

The RIGCHINA ® Model RC-12D Electric viscometer a new type direct indicating instruments, this is a doddle to control with its well-designed on-screen,the intelligence Single-Chip Computer system is commissioned in instruments which are available in 6 and 12 speed designs for use on either 50 Hz and 60HZ electrical power. The standard power source is 220 volts.



The 12 speeds electric viscometer gives new meaning to the term “stand-alone.”

API Tests Pre-programmed

This rheometer is equipped with R1 Rotor Sleeve, B1 Bob, F1 Torsion Spring, and a stainless steel, sample cup for testing according to American Petroleum Institute Recommended Practice.



Push button design for easy operation and better control

Power: 220 VAC, 50/60 Hz

12 preset Speeds: 600,300,200,180,100,90,60,30,6,3,2,1

Speed Accuracy: 0.001 rpm

Dial Accuracy: 0.5

Dial Resolution: 0.1

Sample Cup Volume : 500ml

Torsion Spring : F1

Rotor-Bob : R1, B1



RC Series Viscometer Specifications

Part No.

Model

Description   &Technical Parameters

Remarks

130-35D

RC-35D

Speeds Range:6   preset(600,300,200,100,6,3)

Speed   Accuracy: 0.001 rpm

Dial   Accuracy: 0.5

Dial   Resolution: 0.1

Sample Cup   Volume : 500ml

Torsion   Spring : F1 (F.02 )

Rotor-Bob :   R1, B1

Operating   Temperature : 40℉  to 125℉ (4.4℃   to 52℃)

Power: 230   VAC, 50 (115VAC,60 Hz)

Size:   6.5" × 6" × 18" (16.5 × 15 × 46 cm)
  Weight: 30lb (14 kg)


130-12

RC-12D

Power: 220   VAC, 50/60 Hz

12 preset   Speeds: (600,300,200,180,100,90,60,30,6,3,2,1)

Dial   Accuracy: 0.5

Dial   Resolution: 0.1

Sample Cup   Volume : 500ml

Torsion   Spring : F1 (F.02 )

Rotor-Bob :   R1, B1

Operating   Temperature : 40℉  to 125℉ (4.4℃   to 52℃)

Size:   6.5" × 6" × 18" (16.5 × 15 × 46 cm)
  Weight: 30lb (14 kg)
