Roller Oven, High Temperature 600°F, Model RCRO-4

  1. Roller Ovens provide an excellent method of aging fluid samples for further analysis.
  2. Temperature Range:600℉ (315℃),Capacity 4 unit cells.
  3. Digital temperature controller and Protection against over-temperature.
  4. The primary tool for this aging is a roller oven.The time period needed to more fully develop properties in a drilling fluid varies from as little as several hours (usually 16 hours) to as long as several days. The aging can be done at either ambient or elevated temperatures.
Availability:
Quantity:
  • RCRO-4

  • RIGCHINA

  • 173-04

Roller Oven  is an effective aid in determining the effects of temperature on drilling fluid as it circulates through the well bore. Aging the drilling fluid in pressurized containers effectively demonstrates the thermal effects on viscosity and how various additives behave at elevated temperatures. Aging is done under conditions that vary from static to dynamic and from ambient to highly elevated temperatures.

The time period needed to more fully develop properties varies from as little as several hours (usually18 to 24 hours) to as much as several days. The aging can be done at either ambient or elevated temperatures.

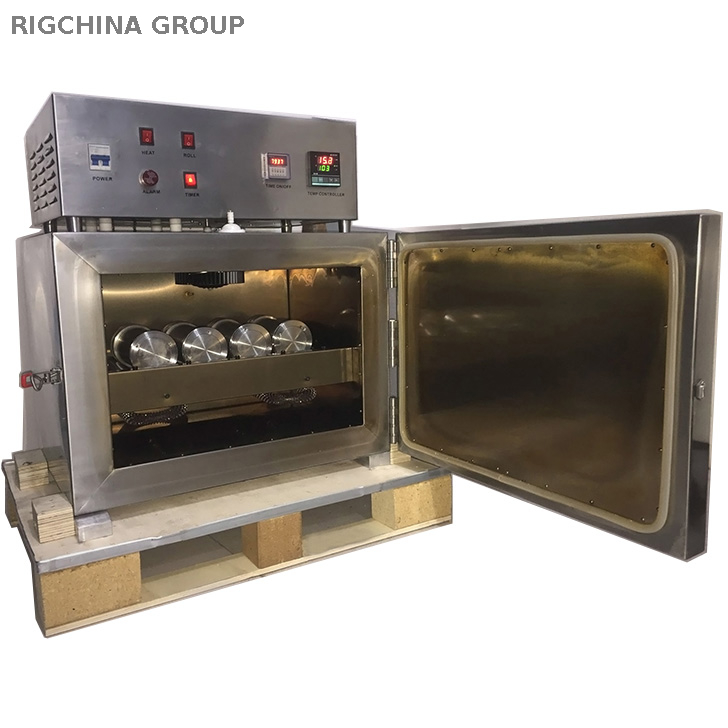

RIGCHINA Roller Oven has two power-driven rollers, a digital temperature controller, and a fail-safe over-temperature protection system.It provides an excellent method of aging fluid samples for further analysis.

High-Temperature Aging Cells containing sample fluids are placed in the roller oven where they are subjected to moderate heat and agitation (rolling) on power driven rollers. Samples may also be heated without rolling (static aging). These Roller Ovens are constructed of polished stainless steel and other corrosion resistant materials. They are well insulated and the temperature is regulated by a digital electronic controller. An internal circulation fan assures an even temperature distribution throughout the oven.

Features & Benefits

  1. Lightweight and compact, compatible for lab and  field

  2. Digital temperature controller

  3. Precise and stable temperature measurements

  4. Temperature Data Log Output for collecting   temperature data

  5. Uniform temperature distribution

  6. Efficient and controlled heating

  7. Better simulation of high pressure/high temperature  conditions

  8. Protection against over-temperature


Roller Oven Specifications - Aging Cell Capacity

Part No.

Model

Power
Supply

Temp.
Range

Heater

Power

No. of

Cells

Inside

Outside

G.W.

173-02

RCRO-2

AC230V

50/60HZ

(Custom)

AC115V

475℉

 (246℃)

650 Watt

    2

12*10*9 in

21*13*19 in

150 P

30*26*22 cm

53*34*48 cm

68 kg

173-03

RCRO-3

600℉

 (315℃)

650 Watt

    2

12*10*9 in

21*13*19 in

172 P

30*26*22 cm

53*34*48 cm

78 kg

173-04

RCRO-4

600℉

(315℃)

1150 Watt

    4

18*18*14 in

28*32*27 in

238 P

46*46*35 cm

70*82*69 cm

108 kg

173-08

RCRO-8

600 ºF

(315℃)

1570 Watt

    8

22*14*25 in

29*34*28 in

282 P

56*36*63 cm

74*86*72 cm

128 kg
